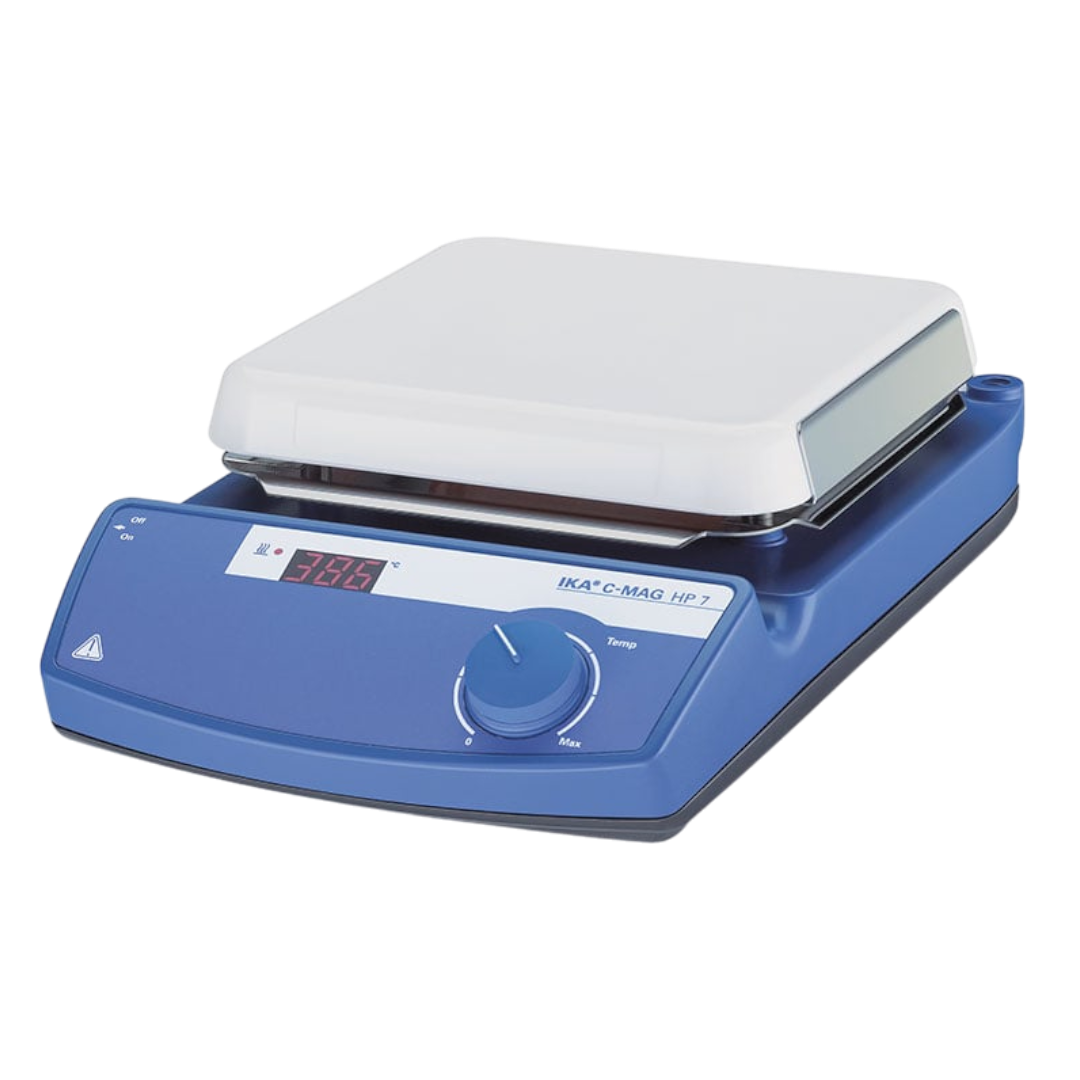

IKA C‑MAG HP 7 Hotplate

Product Code: 0003581800

• Single heating zone hotplate
• Heat output: 1000 W
• Temperature range: 50 – 500 °C
• Maximum volume capacity: approx. 10 L
• Heating plate: ceramic‑glass, dimensions 180 × 180 mm
• Heating rate (1 L H₂O): ~5 K/min
• Connection port for external temperature sensor (e.g. ETS‑D5) for enhanced temperature precision
• Fixed safety circuit 550 °C, “Hot‑Top” indicator for hot surface warning, raised control panel to protect from spills
• Dimensions: 220 × 105 × 330 mm; Weight: ~5 kg
• Protection class: IP 21; Ambient conditions: 5–40 °C, humidity ≤80 %
