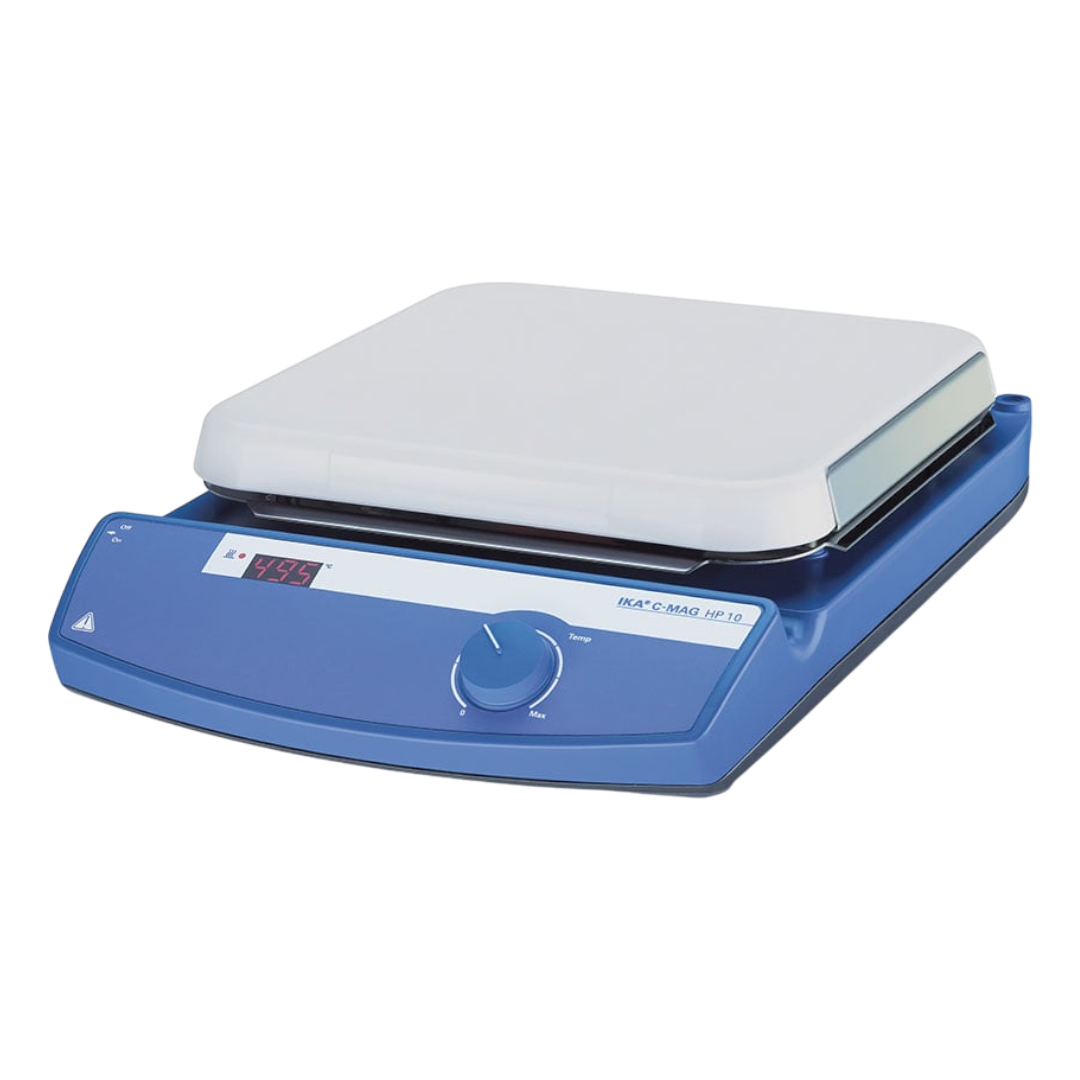

IKA C‑MAG HP 10 Hotplate

Product Code: 0003582000

• Single heating zone hotplate :
• Heat output: 1500 W
• Temperature range: 50 – 500 °C
• Maximum volume capacity: approx. 15 L
• Heating plate: ceramic‑glass, dimensions 260 × 260 mm
• Heating rate (1 L H₂O): ~5 K/min
• External temperature sensor port (ETS‑D5) for precise temperature control
• Fixed safety circuit 550 °C, “Hot‑Top” indicator, elevated control panel for spill protection
• Dimensions: 300 × 105 × 415 mm; Weight: ~6 kg
• Protection class: IP 21; Permissible ambient temperature: 5–40 °C; humidity ≤80 %
