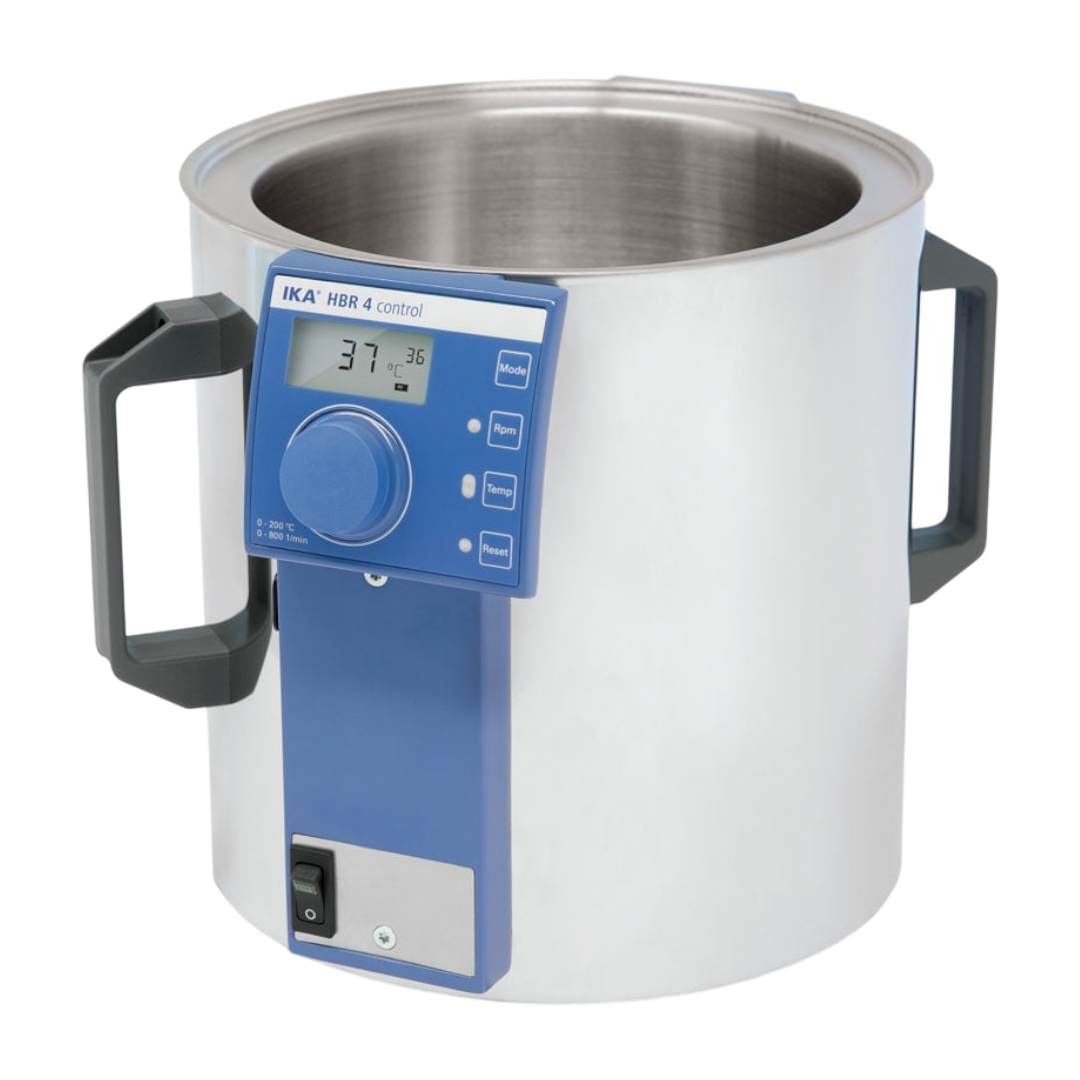

IKA HBR 4 Control Heating Bath
High‑precision heating bath with integrated magnetic stirrer. The IKA HBR 4 Control is suitable for tempering oil or water baths, offering stable temperature control up to 200 °C and a stirring mechanism for uniform heat distribution, ideal for chemical synthesis, quality control, and laboratory preparation work.
Product Code: 0020003549
• Maximum bath volume: 4 L
• Heating power: 1000 W
• Temperature range: room temperature up to 200 °C
• Adjustable safety circuit: 50 – 210 °C (DIN 12876 class II)
• Integrated magnetic stirrer drive with speed 150–800 rpm for uniform temperature distribution in bath fluid
• Material in contact with medium: stainless steel 1.4301
• Minimum filling point: 20 mm, Inner diameter 200 mm (Outer diameter 250 mm)
• RS‑232 interface & external temperature sensor connection (PT1000) for precise control
• Protection class: IP20; Weight: 5.6 kg; Dimensions (W×H×D): 340 × 250 × 340 mm
