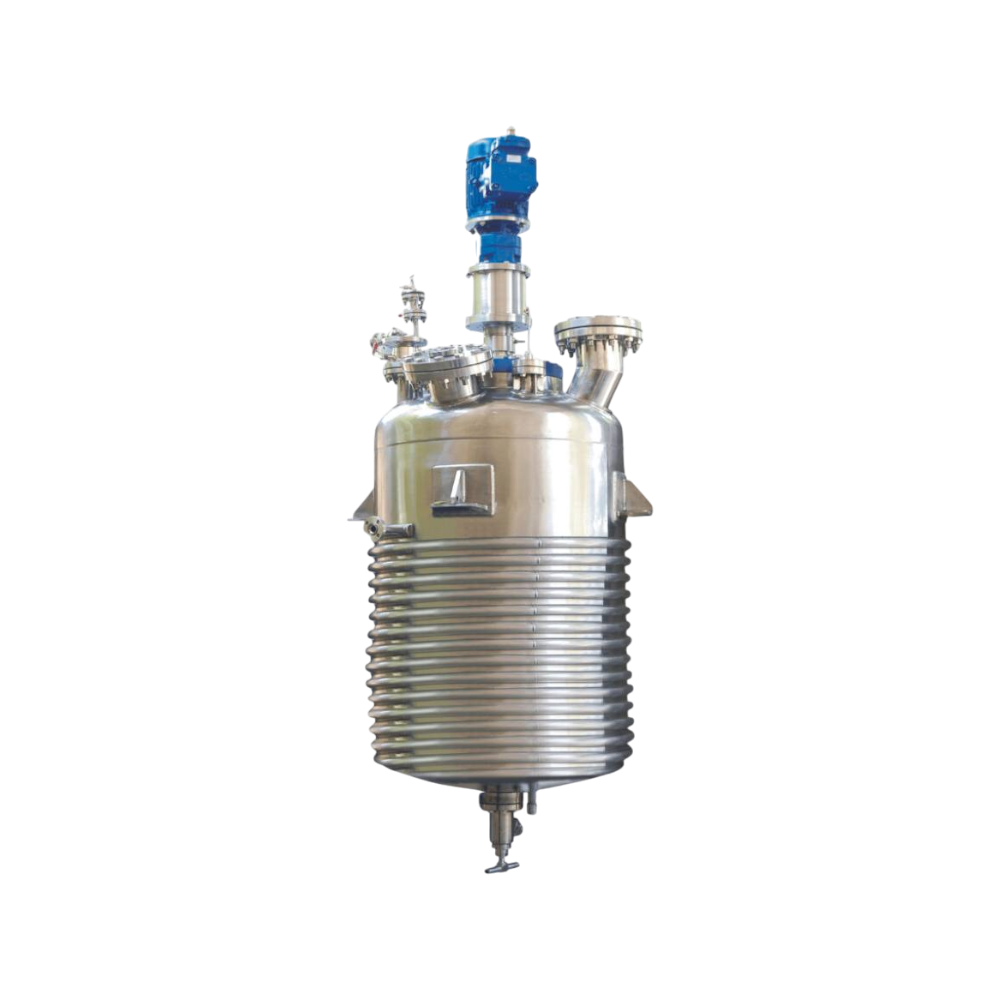

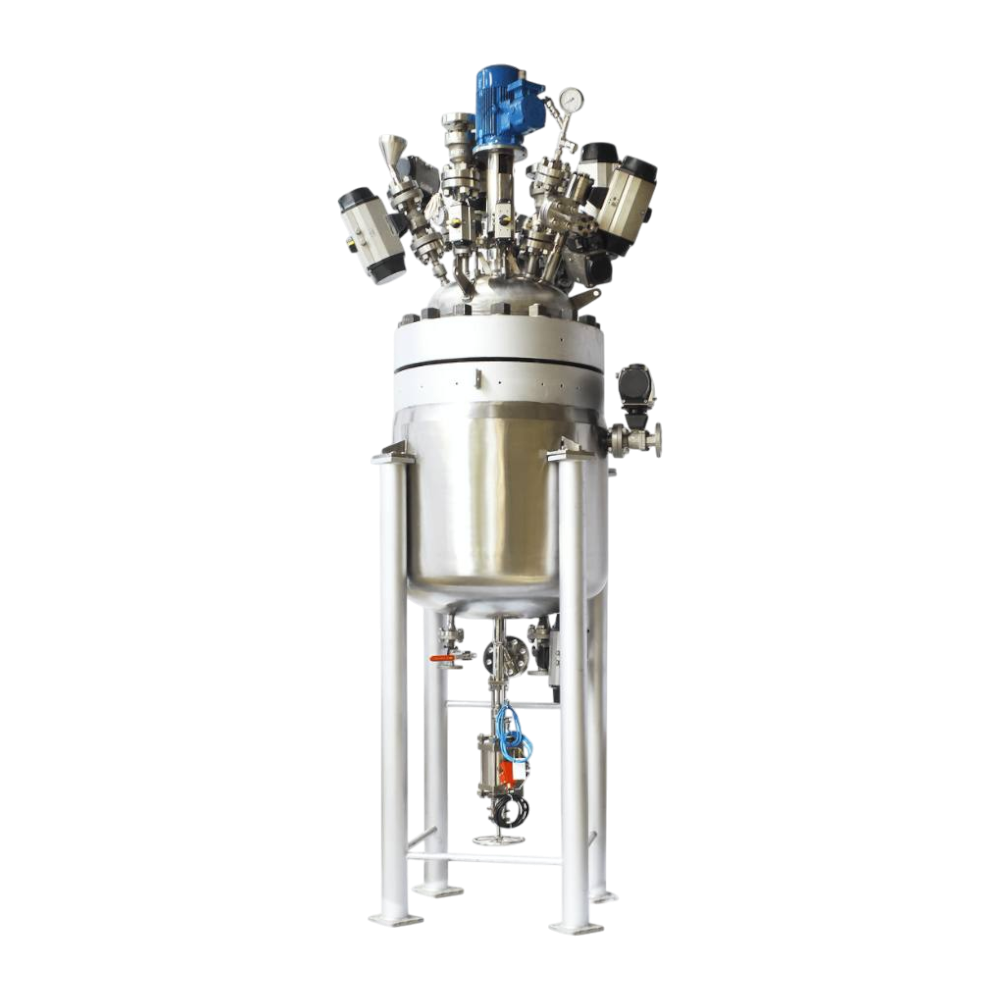

AMAR Customized Pressure Reactors

Volume: 100 L to 1,000 L custom-built reactors

Pressure: Up to 100 bar

Temperature: Up to 350 °C

Material: SS-316, SS-316L, Hastelloy, Titanium, Monel, Inconel, Zirconium, and other corrosion-resistant alloys

Drive System: Zero-leakage magnetic drive couplings for safe handling of hazardous fluids

Certifications: ASME-U Stamp, PED, CE, CSA, Ex-proof, and ATEX certified systems

Skid-Mounted System: Complete package including valves, piping, accessories, control panel, and SCADA software

Heating & Cooling Options: External jackets, limpets, internal coils, and external loop heat exchangers

Impellers: High mass transfer gas induction impeller and pitch blade turbine impeller

Customization: Fully customizable design to meet specific process and production requirements

Applications: Alkylation, Amination, Bromination, Carboxylation, Catalytic Reduction, Chemical Synthesis, Chlorination, Dehydrogenation, Esterification, Ethoxylation, Halogenation, Hydrogenation, Material Synthesis, Methylation, Nitration, Oxidation, Ozonization, Polymerization, Sulphonation, and related processes
